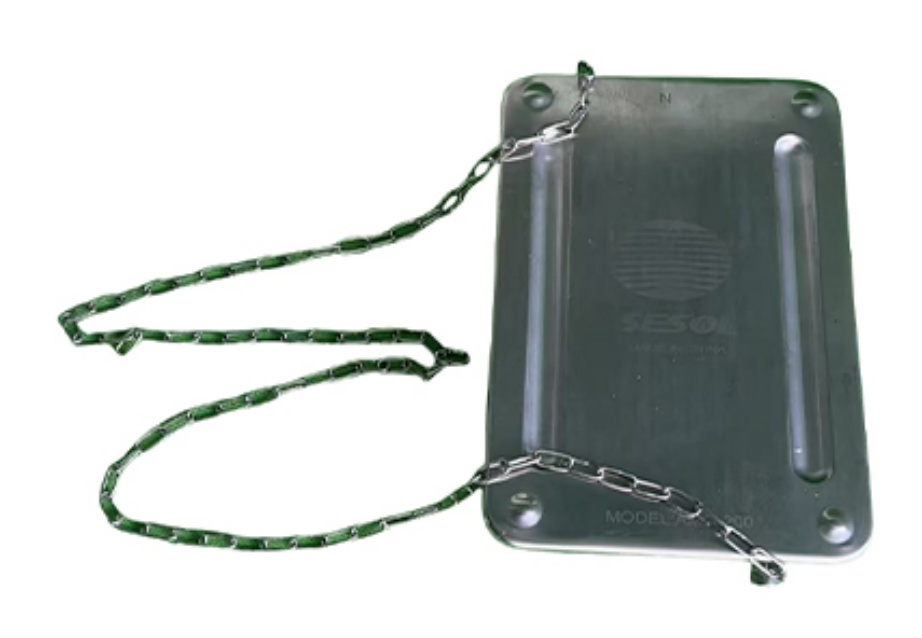

magnetic filter

share to:

This series of products is a vertical magnetic bar device, which is arranged in the oil tank. As the oil flows, it adsorbs the ferromagnetic powder in the oil, effectively reducing the damage of the ferromagnetic powder in the oil to the subsequent equipment, effectively preventing the deterioration of the oil, and achieving the purpose of energy saving, cost saving and resource saving.
It is used to adsorb and remove the chip powder mixed in various working machinery lubricating oils, hydraulic oils and other oils to improve the cleanliness of the lubricating oil.

Details

Technical advantages
1. High-strength NdFeB magnets are used, which have powerful performance, no consumables, and no electricity consumption. One-time investment, lifelong benefits, and a service life of more than 20 years.
2. A cleaning tray is designed on the permanent magnet column, which is convenient for cleaning. Hold the handle and gently lift the cleaning tray, which is extremely convenient to use and maintain.
3. The whole equipment adopts a shell design of stainless steel 304 material, with a brushed surface, beautiful appearance, excellent corrosion resistance, and ensures that the equipment is durable.
4. The temperature resistance of the equipment can reach 80℃.

Technical Parameters

Overall dimensions(mm)

L230*W160*H60

Q/P ratio(Hydraulic oil 0-50L)

4

Q/P ratio(lubricating oil100-200L)

20

Heat resistance temperature

<80℃

Weight(KG)

4.2
